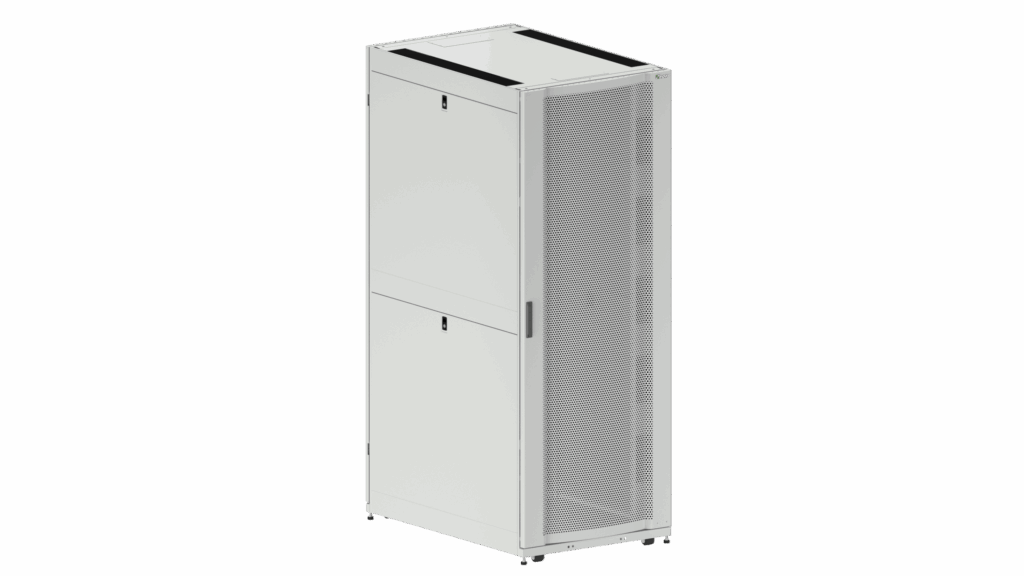

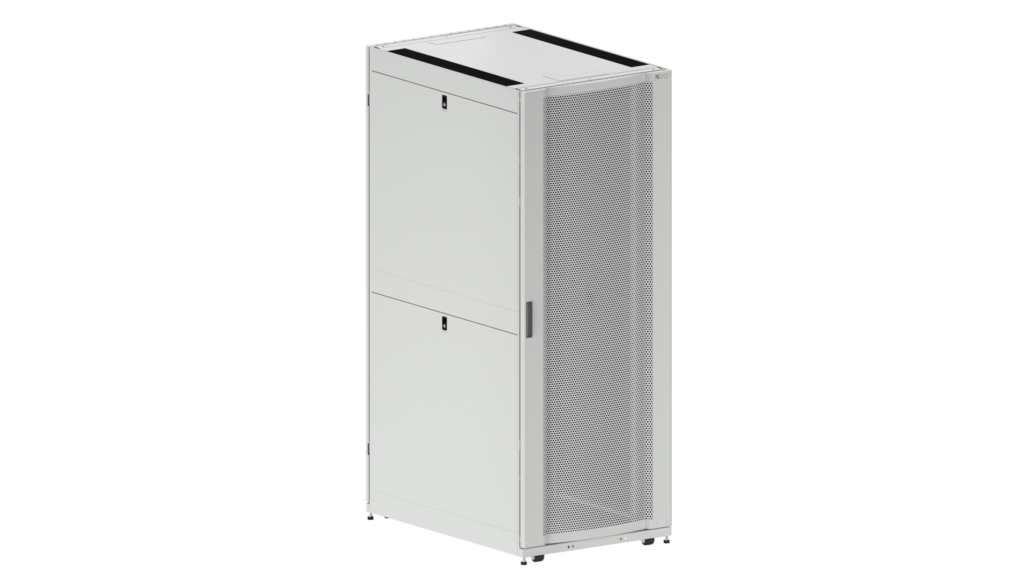

Infra Rack
Inova Infra Rack is a cost-effective and reliable solution designed for standard IT deployments.
Featuring a durable modular structure, it supports efficient airflow management, integrated cable routing, and tool-free installation, enabling fast and practical deployment across a wide range of data center environments.
Product Key Features
Sturdy Structural Performance
Built tough with exceptional load-bearing capacity, featuring a 1500 kg static load rating and 1200 kg dynamic load rating, ensuring reliable support for your critical equipment.
Short Lead Time & Rapid On-Site Assembly
Optimized with flat-pack shipping for streamlined logistics and shorter delivery cycles; supports ultra-quick assembly that can be completed by 2 people in only 15 minutes, significantly reducing on-site deployment time.
Diversified Configurations
Equipped with optional accessories and multi-scenario cable management, featuring optimized airflow and hot air leakage control for smooth ventilation and neat, organized cabling.
Application Environment
| Number of Rack Units | 42U/45U/48U |
| Width | 23.6 in (600 mm) / 31.5 in (800 mm) |
| Depth | 31.5 in (800 mm) / 42.1 in (1070 mm) / 47.2 in (1200 mm) |
| Static Loading | 3300 lb (1500 kg) |
| Dynamic Loading | 2640 lb (1200 kg) |
| Protection Rating | IP20 |
| Conformance | EIA-310E, CE, RoHS, REACH |
| Standard Configuration | Frames, Doors, Side panels, Beams, Roof, 19" Mounting Rails, Leveling feet and Castors, L-Brackets, Cage nuts kit. |
| Optional Accessories | Vertical Cable Managers, Side Trough, Horizontal Cable Managers, Air Dam Kit, Brushed Side Panels, Blanking Panels, Cable Trays, Plinth Base, Floor Tile Grommet, Earthing Bars. |
| Color | Black/ White/ Grey |
| Warranty | 5 Years |
